PAD PRINTING II

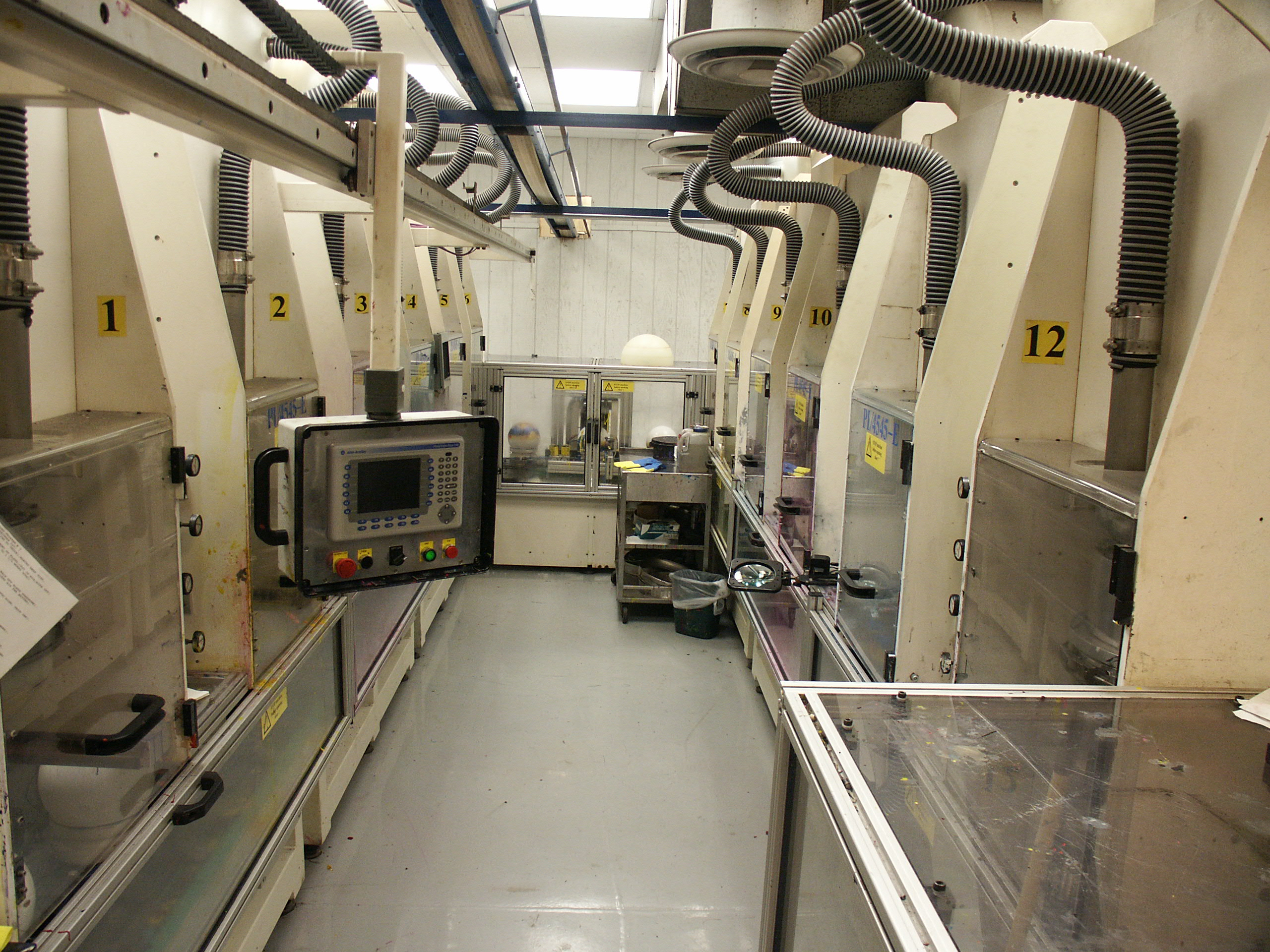

  This is a 12 head  printer that was originally equipped with a PLC that was no longer supported.  Each head was equipped with a Lenze servo drive and I/O communicating on Can bus.  The main PLC was replaced with an Allen Bradley Control Logix PLC.  Communications to the Lenze drives was done via Devicenet.  All printing parameters along with servo drive control was done via Devicenet. Communications to the head I/O was done with Controlnet. Communications to the Panelview Plus was done with Ethernet.  This view is the center of the machine where the operator works.

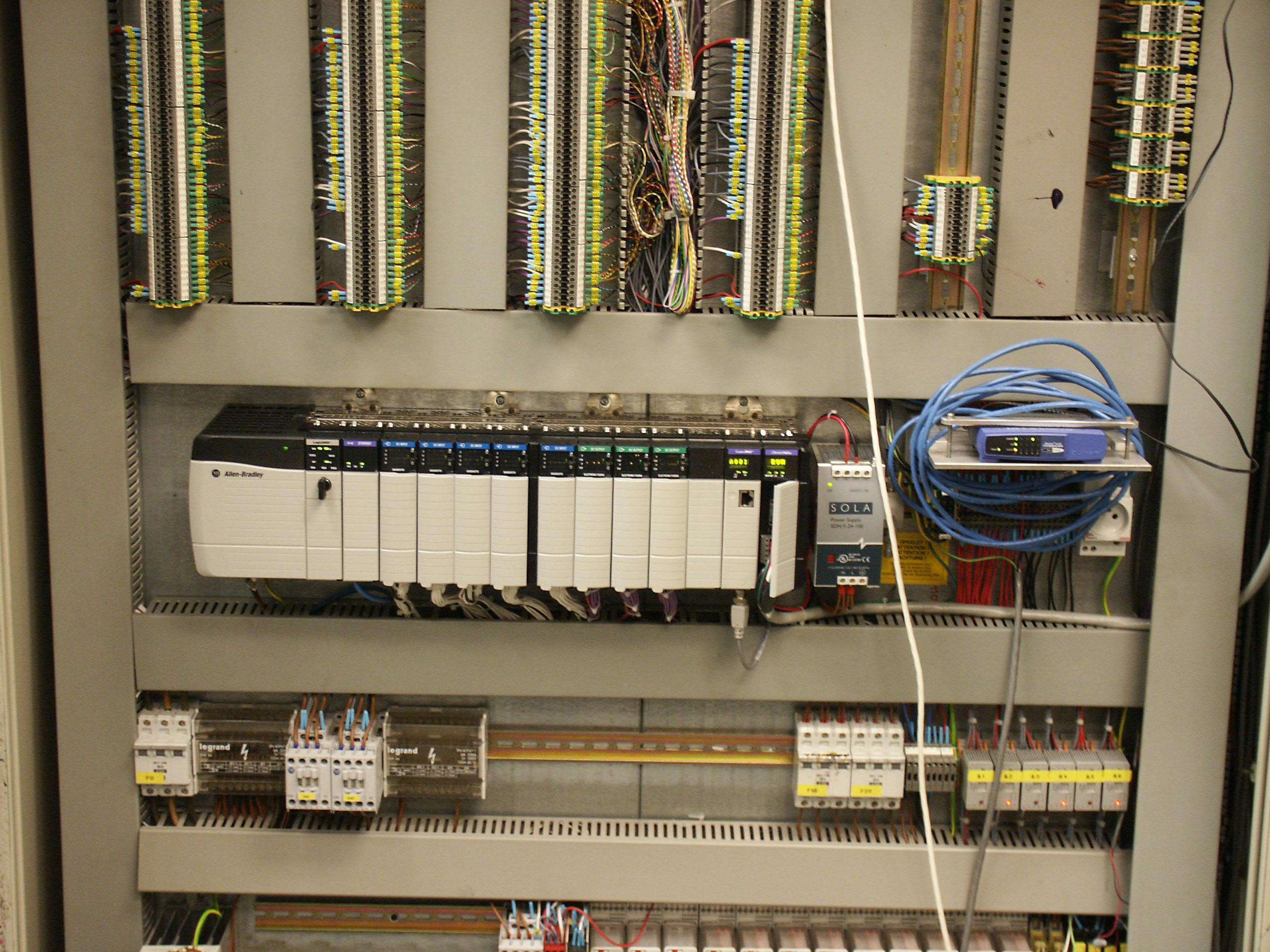

Control Logix PLC installed in main PLC enclosure.  Original PLC I/O addressing matched to original machine drawings.

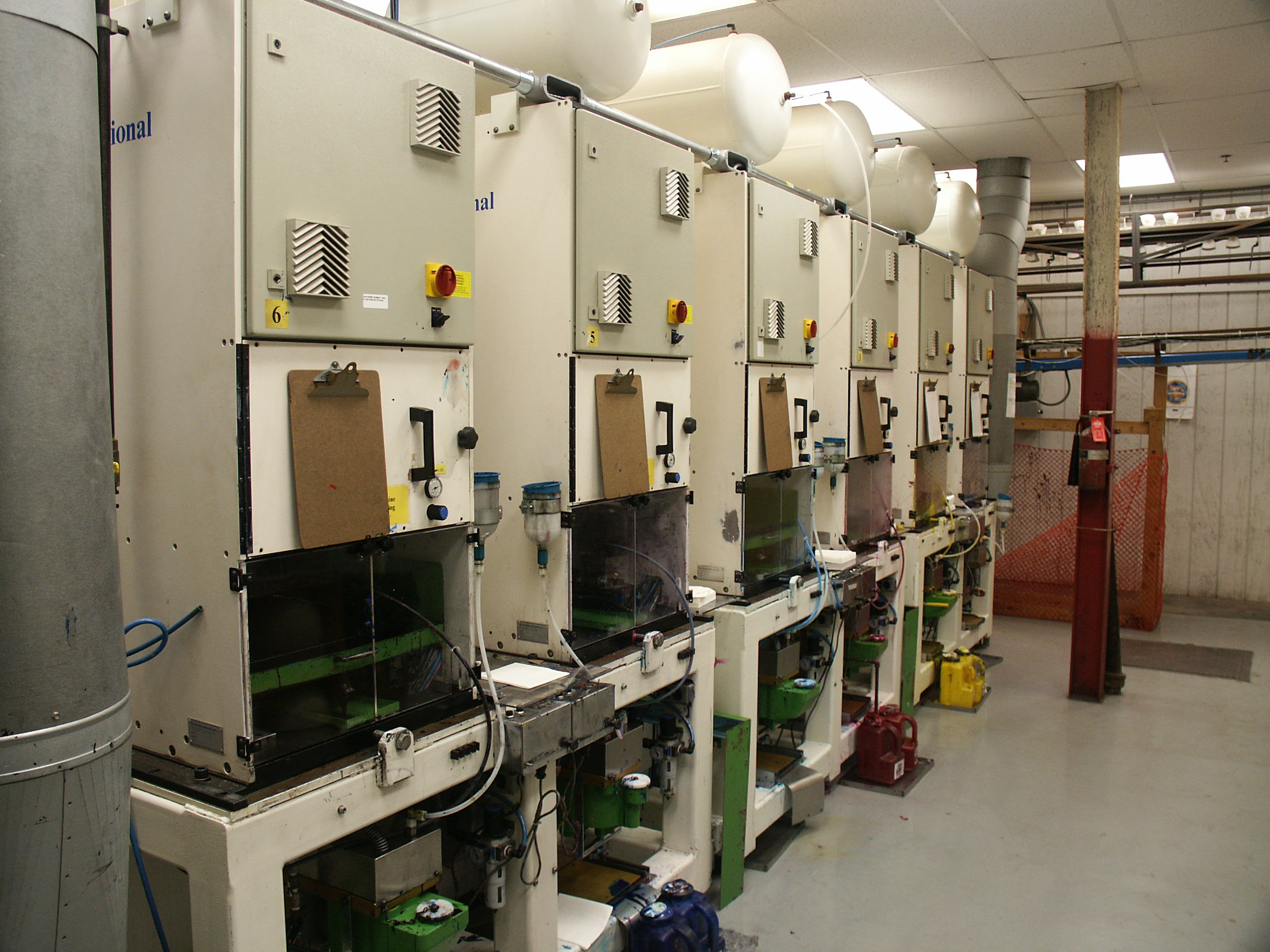

Backside view of the machine with access to the servo drive enclosures.

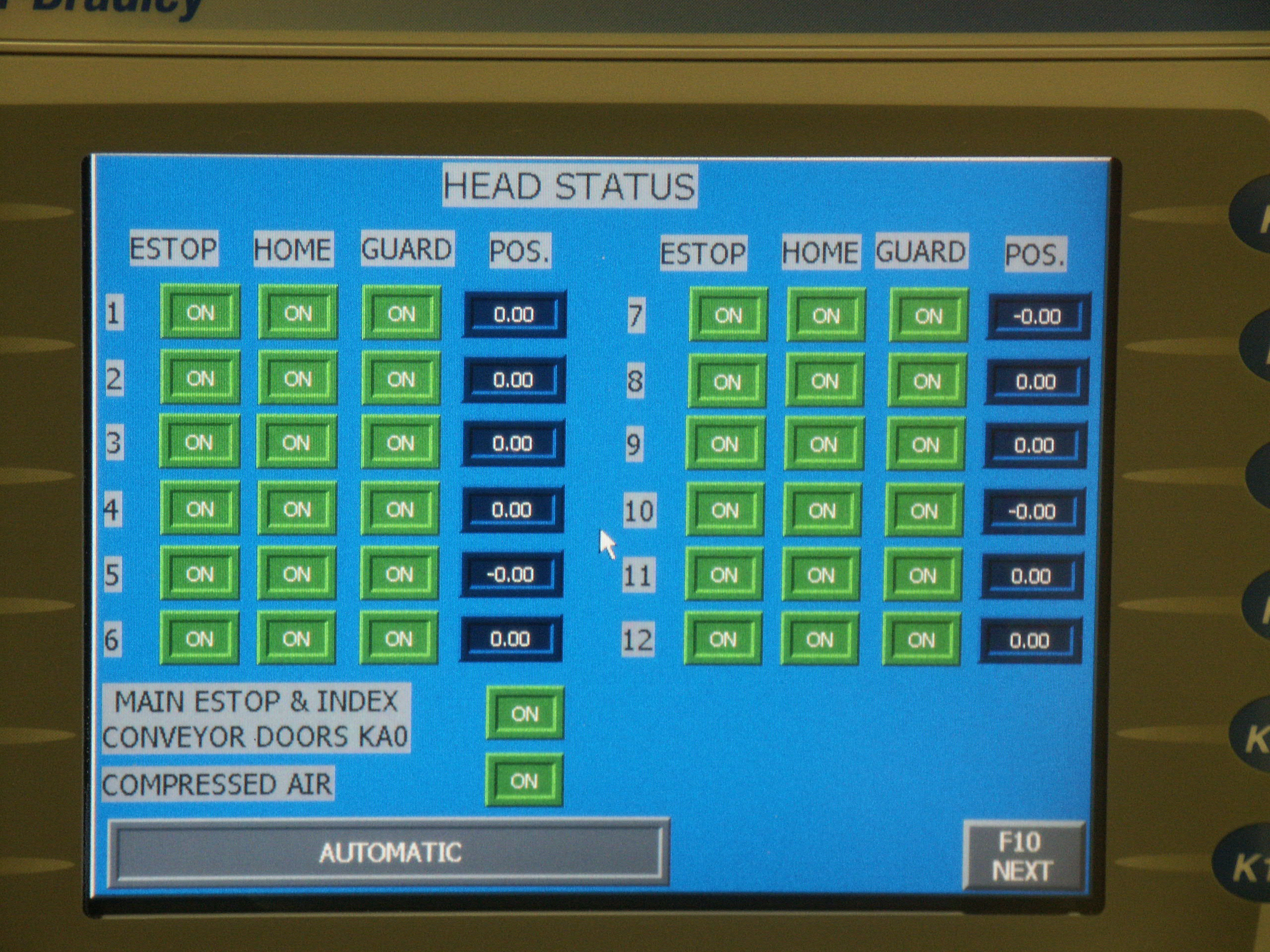

Added feature on the Panelview Plus annunciating the status of each head for emergency stop, homing status, safety guard, and head position.

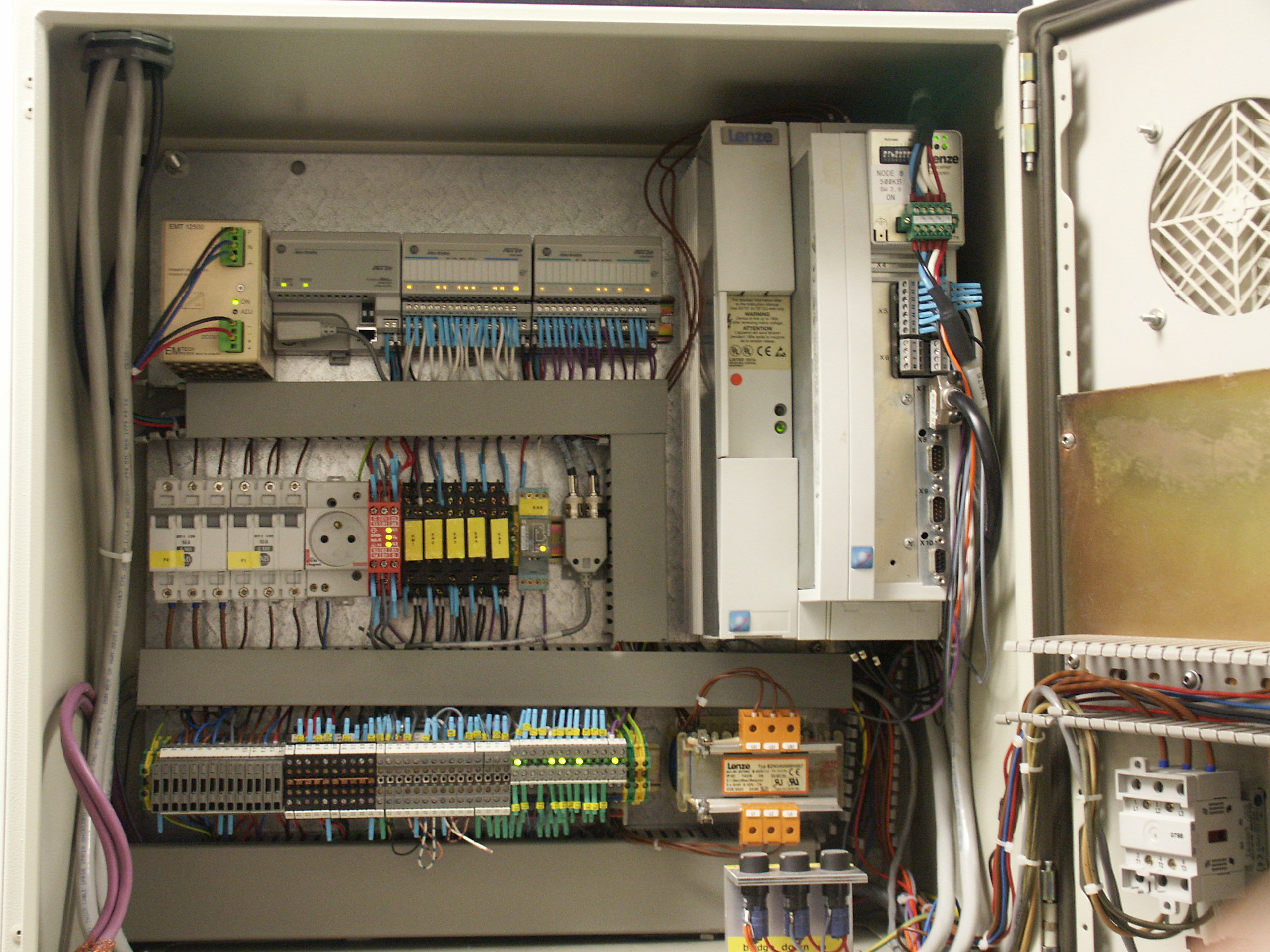

Servo enclosure after conversion.  Flex I/O on Devicenet and the servo drive on Controlnet.
